Performance Hobbies Fiberglass Scale Rocket Kits

Kit includes:

• 3" Filament Wound 3:1 Ogive Nose Cone
• 3" x 22” G12 Payload Tube
• 3" x 8” G12 Coupler
• 3" x 44” G12 Slotted Airframe
• 3" x 1" G12 Switch Band
• 1/8” G10 Sustainer Fins (4)
• 54mm x 12” G12 Sustainer MMT
• 5.5” x 3" PETG Transition
• 5.5” x 42” G12 Slotted Airframe
• 3/16” G-10 Booster Fins (4)
• 75mm x 16” G12 Booster MMT
• G10 Centering Rings and Bulk Plates

This Kit Features

• Build as 1 or 2 Stage
• Dual Deploy capable
• CNC Precision Cut Parts
• CNC Precision Slotted

Can be built as a single stage or a two stage rocket

Kit includes:

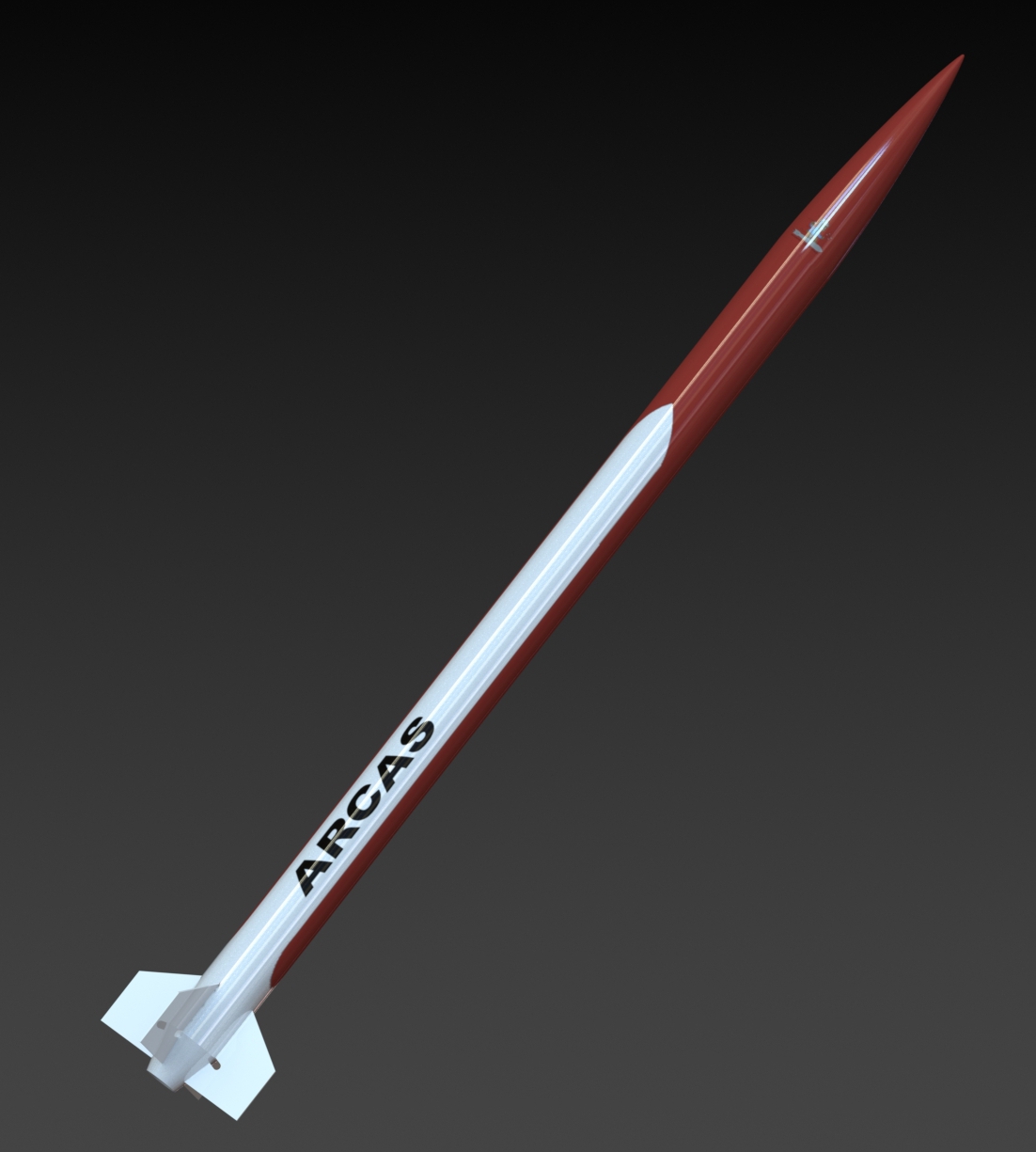

Filament wound 4.5” G-12 fiberglass Scale ARCAS nosecone with aluminum tip

Filament wound 4.5” x 40” G-12 one piece fiberglass slotted airframe with boat tail

4.5” x 2” G-12 switch band

4.5” x 11” G-12 coupler

4.5” x 24” G-12 payload

(1) 1/8” G-10 nosecone bulk plate

(2) G-10 Avbay lids

(2) 1/8” x 54mm G-10 centering rings

54mm x 16” G-12 motor mount tube

(4) 3/16” G-10 fins with leading edge beveled

54mm motor mount only

Kit includes :

4.5” Full Scale G-12 filament wound fiberglass ARCAS nosecone with aluminum tip

4.5” x 40” G-12 slotted filament wound fiberglass airframe

4.5” x 2” G-12 switch band

4.5” x 12” G-12 coupler

4.5” x 24” G-12 payload

(1) 1/8” G-10 nosecone bulk plate

(2) G-10 Avbay lids

(2) 1/8” x 4.5" x 75mm G-10 centering rings

54mm x 16” G-12 motor mount tube

(4) 3/16” G-10 fins with leading edge beveled

Optional 75 or 98mm motor mount

4" 8 foot 8" tall Fiberglass Rocket Kit

Includes

• 4” 5:1 ogive G-12 filament wound fiberglass nosecone with aluminum tip
• 4” x 60” slotted G-12 fiberglass airframe
• 4" x 22" G-12 payload tube
• 4" x 2" G-12 switch band
• 4” x 10” G-12 coupler
• 75mm x 22” G-12 motor mount tube
• (3) 3/32” x 4” G-10 coupler bulk plates
• (2) 3/32” x 4" G-10 airframe bulk plates and
• (3) 3/32” x 4” x 75mm centering rings,
• (4) 3/16" G-10 fins with leading edge beveled

6" Diameter 13’ Rocket Kit includes:

• Filament wound G-12 fiberglass nosecone 5:1 ogive with aluminum tip.
• 6” x 60” slotted G-12 fiberglass airframe
• 6” x 60” G-12 payload
• 6” x 5” G-12 switch band
• 6” x 14” G-12 coupler
• 98mm x 30” G-12 motor mount tube
• (3) 1/8” x 6” G-10 coupler bulk plates
• (2) 1/8” x 6” G-10 airframe bulk plates
• (3) 1/8” x 6” x 98mm G-10 centering rings
• (4) 3/16" G-10 fins with leading edge beveled.

Allow two weeks manufacturing time.

5 feet 5 inch tall!

3" G-12 fiberglass rocket Kit with through the wall fin attachment.

Kit includes the following:

• 3" 5:1 Ogive filament wound fiberglass nosecone with composite tip.
• (4) 1/8” G-10 fins with leading edge beveled.
• 3" x 48” G-12 airframe
• 3" x 3/32” G-10 coupler bulk plate
• (3) 3/32” x 3" x 38mm G-10 centering rings
• 38mm x 16” G-12 motor mount tube </ul?

8” 1” tall scale Sounding rocket kit Includes the following:

4.5” 5:1 ogive G-12 filament wound fiberglass nosecone with aluminum tip.

4.5” x 48” slotted G-12 fiberglass airframe

4.5” x 24” G-12 payload section

4.5” x 2.5” G-12 switch band

(1) 1/8” x 4.5” G-10 nosecone bulk plate

(2) 4.5” G-10 Avbay lids

(3) 1/8” x 4.5” x 75mm G-10 centering rings

75mm x 22” G-12 motor mount tube

(4) 3/16” G-10 fins with leading edge beveled

6" x 11 foot tall Scale Fiberglass Rocket Kit.

Includes the following:
• 6” x 60” G-12 airframe
• 6” x 33” G-12 payload
• 6” x 3” G-12 switch band
• 6” x 14” G-12 coupler
• three 1/8” x 6” G-10 coupler bulk plates
• two 1/8” x 6” G-10 airframe bulk plates
• 98mm x 30" G-12 motor mount
• three 6" x 98mm G-10 centering rings
• four 3/16" thick G-10 fins with leading edge beveled
• 6" 5:1 ogive filament wound G-12 nosecone with aluminum tip

This is a 1/2 scale model of a very famous Sounding Rocket once flown at Wallops Island.

11.5" tall! (B.A.R.!)

Includes the following :

• 37.5" long 7.5" 5:1 ogive filament wound G-12 fiberglass nosecone with aluminum tip.
• (1) 7.5" x 60" G-12 airframe
• (1) 7.5" x 36" G-12 payload
• (1) 7.5" x 3" G-12 switch band
• (1) 7.5" x 18” G-12 coupler
• (2) 7.5" G-10 airframe bulk plates
• (3) 7.5" G-10 coupler bulk plates
• (3) 7.5" x 98mm G-10 centering rings
• (1) 4" x 30" G-12 motor mount tube
• (4) 3/16" G-10 fins with leading edge beveled

43.5" tall and weighs about 3 pounds.

Comes with one piece molded glue on fins

4” scale fiberglass nosecone

4” x 21.375” G-12 fiberglass air frame

38mm x 12” G-12 fiberglass motor mount tube

(2) 38mm x 3/32” G-10 fiberglass centering rings

Decals are available from Stickershock

16’ 2” ! This is a heavy 1/8” thick G-12 fiberglass airframe kit. Includes the following:

9” 5:1 ogive filament wound G-12 fiberglass nosecone with aluminum tip

9” x 72” G-12 slotted airframe

9” x 72” G-12 payload section

9” x 20” x 1/8” G-12 coupler

(2) 9” x 1/4” G-10 Avbay lids

4” x 33” G-12 motor mount tube

(3) 1/4” x 98mm G-10 centering rings

(4) 1/4” G-10 fins with leading edge beveled Optional 6.1” 152mm x 48” motor mount tube available

5 foot Scale kit Includes the following: filament wound G-12 fiberglass nosecone with composite tip 4” x 8” G-12 Coupler for head in deployment (2) G-10 Avbay lids 32” G-12 slotted airframe 54mm x 12” G-12 motor mount tube (3) 1/8” x 54mm G-12 centering rings (4) 1/8" G-10 fins

Scale color olive drab 4:1 Ogive filament wound nosecone with composite tip, 4” x 1/8” G-10 nosecone bulk plate, 4” x 32” G-12 slotted fiberglass Olive Drab airframe , (4) 1/8” G-10 Olive Drab fins, 54mm x 12” inch G-12 motor mount tube and three 1/8” x 54mm G-10 centering rings.

Comes with 3:1 ogive G-12 filament wound nosecone with composite tip, (3) 1/8” G-10 centering rings, 4” x 12” G-12 motor mount tube, and (4) 1/8” G-10 fins.

1/5 Scale kit with 4" G-12 filament wound two part fiberglass nosecone, 4" G-12 fiberglass airframe and 54mm motor mount. 1/8" centering rings, nosecone bulk plate & heavy duty G-10 fins.

5’ 5” Fiberglass Rocket Kit Comes with one piece boat tail fin can assembly, 4” G12 filament wound airframe, scale 4:1 conical nosecone, 1/8" G-10 centering rings and 38 or 54mm x 16” motor mount tube. Specify 38 or 54mm.

4" Fiberglass Rocket Kit

4" Fiberglass Rocket Kit

Kit includes filament wound 4.5” G-12 Scale ARCAS nosecone with aluminum tip. Filament wound 4.5” x 48” G-12 one piece slotted airframe with boat tail. 4.5” x 1” G-12 switch band 4.5” x 12” G-12 coupler 4.5” x 24” G-12 payload (3) 3/32” coupler bulk plates (2) 3/32” airframe bulk plates (2) 3/32” x 54mm G-10 centering rings 54mm x 16” G-12 motor mount tube (4) Scale milled and beveled aluminum fins

4.5" Carbon Fiber Rocket Kit with 54mm motor mount.

5.5" Fiberglass Rocket Kit. Includes 5.5” filament wound scale nosecone with composite tip three 1/8" G-10 centering rings 1/8" G-10 nosecone bulkplate 3/16" beveled G-10 fins Motor mount options are 54mm x 16”

5.5" Fiberglass Rocket Kit

5.5" Carbon Fiber Rocket Kit includes carbon fiber air frame, centering rings and fins. Nosecone and transition is two part molded fiberglass with gelcoat finish. Deposit required. Allow 3 to 4 weeks manufacture time.

6" Fiberglass Rocket kit Includes the following components:

6" 5:1 ogive G-12 filament wound fiberglass nosecone with aluminum tip

6” x 1/8” G-10 fiberglass nosecone bulk plate

6” x 48” slotted G-12 filament wound fiberglass airframe

98mm x 22” G-12 filament wound fiberglass motor mount tube

(3) 1/8” x 6” x 98mm G-10 fiberglass centering rings

(4) 3/16” G-10 fiberglass fins with leading abd trailing edges beveled

7" Fiberglass Rocket Kit

7" 2:8 to 1 Scale AMRAAM G-12 filament wound fiberglass nosecone with an aluminum tip.

(1) each 7" x 48” G-12 fiberglass airframes for booster section.

7" x 48" G-12 payload section

7" x 24" intermediate G-12 airframe

(2)7" x 14" G-12 coupler

7" x 2" G-12 switch band

(2) 7" x 14” G-12 coupler

(3) 7" x 1/8" G-10 coupler bulk plates

(2) 7" x 1/8"G-10 airframe bulk plates

(3) 7" x 98mm x 1/8" G-10 centering rings

98mm x 22" G-12 motor mount tube

(8) 3/16" G-10 beveled fins

7" Carbon Fiber Rocket Kit Special order. Call, text or email for more information.

7.5" Fiberglass Rocket Kit

8.25" Fiberglass Rocket Kit

8.25" Carbon Fiber Rocket Kit

8.25" Fiberglass Rocket Kit includes:

• Detailed one piece molded carbon fiber fin can with scale upper and lower bevels <li scale diameter 8.25" airframe and payload
• 8" x 16" coupler
• two 1/8" G-10 airframe and three coupler bulk plates
• 98mm x 30" motormount tube
• three 1/8" G-10 centering rings
• scale detailed Nike Smoke nosecone with hatch panels

8.25" Carbon Fiber Rocket Kit

Includes carbon fiber airframe, carbon fiber coupler and one piece carbon fiber fin can.

Nosecone is detailed hand laid fiberglass with scale access panels.

9" Fiberglass Rocket Kit

5.5” Fiberglass Rocket Kit Includes the following:

5.5” 3:1 ogive G-12 filament wound fiberglass nosecone with aluminum tip

5.5” x 2” G-12 switch band

5.5” x 10” slotted G-12 airframe

5.5” slotted G-12 boat tail

(2) 1/8” x 6” G-10 airframe bulk plates

(2) 1/8” x 6” G-10 coupler bulk plates

(2) 1/8” x 6” x 75mm G-10 centering rings

(4) 1/8” beveled G-10 fins

54mm G-12 motor mount tube

6 foot tall, 8” Fiberglass Rocket Kit

8” 3:1 ogive G-12 filament wound fiberglass nosecone with aluminum tip

8” x 2” G-12 switch band

8” x 22” slotted G-12 airframe

8” G-12 slotted boat tail

(2) 1/8” x 8” G-10 airframe bulk plates

(2) 1/8” x 8” G-10 coupler bulk plates

(2) 1/8” x 8” x 98mm G-10 centering rings

98mm x 22” G-12 motor mount tube

(4) 3/16” G-10 beveled G-10 fins

11.67” Fiberglass Rocket Kit
Includes:

• Scale fiberglass Nike Smoke nosecone with hatch panels.
• One piece molded fiberglass fin can with white gelcoat finish.
• 11.67” x 60” G-12 main airframe
• 11.67” x 4” G-12 switch band
• 11.67” x 36” G-12 payload section
• 11.44” x 24” G-12 coupler
• (3) 1/2” 9 ply plywood centering rings
• (1) 1/2” 9 ply plywood nosecone bulk plate
• (2) 1/2” 9 ply plywood coupler bulk plates
• (2) 1/2” 9 ply plywood airframe bulk plates

Motor Mount options

• 98mm motor single, or cluster combination
• 152mm x 33” single add $150.00

11.67” x 16`` 2" tall Fiberglass Rocket Kit

Bottom airframe is slotted.

Nosecone is two part casted fiberglass with white gelcoat finish.

Fins are two part casted with white gelcoat finish.

Boat tail is two part casted fiberglass and slotted.

11.67” 4:1 conical casted fiberglass nosecone

11.67” x 50” G-12 payload section

11.67” x 4” G-12 switch band

(2) 11.67” x 1/4” G-10 Avbay lids

1/8” x 11.44” x 23.75” altimeter sled

11.67” x 24” G-12 coupler

11.67” x 60” slotted G-12 airframe

3” casted and foam filled fiberglass fins

11.67” casted fiberglass boat tail

(3) 11.67” x 98mm x 3/16” G-10 centering rings

98mm x 36” G-12 motor mount tube

Optional 6.1” x 48” G-12 motor mount and centering ring upgrade add $150.00.

16.5" Fiberglass Rocket Kit. Made to order.

16.5" Carbon Fiber Rocket Kit. Made to order.

7.5” kit

7” fiberglass kit

7.5" 1/3rd scale kit.

• fiberglass nosecone
• 7.5" x 48" G-12 fiberglass airframe
• 7.5" x 24" G-12 payload section
• 7.5" x 16" G-12 fiberglass coupler
• 7.5” x 2” G-12 switch band
• four 3/16" G-10 fiberglass fins beveled top and bottom
• 98mm x 30” G-12 motor mount tube
• three 1/8" x 7.5" x 98mm G-10 centering rings
• two 7.5" G-10 fiberglass Avbay lids
• one 1/8" x 7.5" G-10 fiberglass nosecone bulk plate

7.5” kit

7.5” kit

6” kit

6” kit

• 6” 5:1 Conical filament wound G-12 fiberglass nosecone with aluminum tip
• 6” x 48” G-12 fiberglass airframe
• 6” x 26” G-12 fiberglass payload sectizon
• 6” x 2” G-12 fiberglass switch band
• (3) 1/8” G-10 coupler bulk plates
• (2) 1/8” G-10 airframe bulk plates
• (3) 1/8” x 98mm G-10 centering rings
• (3) 3/16” G-10 fiberglass fins with leading edge beveled
• 98mm x 22” G-12 fiberglass motor mount
• 6” G-12 filament wound tailcone

6.6 foot tall kit.

Includes

• two part casted fiberglass nosecone with cockpit and gelcoat finish
• G-12 6" x 48" slotted fiberglass airframe
• slotted fiberglass chines
• G-12 filament wound fiberglass tail cone
• 3/16" G-10 fiberglass fins beveled top and bottom
• G-12 75mm x 33” motor mount tube
• four 1/8" x 6" x 75mm G-10 centering rings
• 1/8" G-10 tail cone centering ring
